Continuous Integration and Continuous Delivery (CICD)

This project uses GitHub actions to automatically deploy the React-based webapp and the Cloud Run Functions to Google Cloud Platform. Because this is a portfolio project, and there are not customers dependent on it 24/7, commits to the main source code branch are pushed directly to the production environment.

Basically, if you check a change into the main branch, and it is in the sunlight_web_app folder, the web app will get pushed the production by one GitHub action. If unit tests on the app fail, the application will not be pushed. The test output is written in JUnit format so that GitHub can read and display it with the build information. (This is a pretty common way of sharing test results with build systems.)

If you check a change into the functions/process_sensor_status the sensor status monitor function will be pushed to production by another GitHub action.

Screenshots

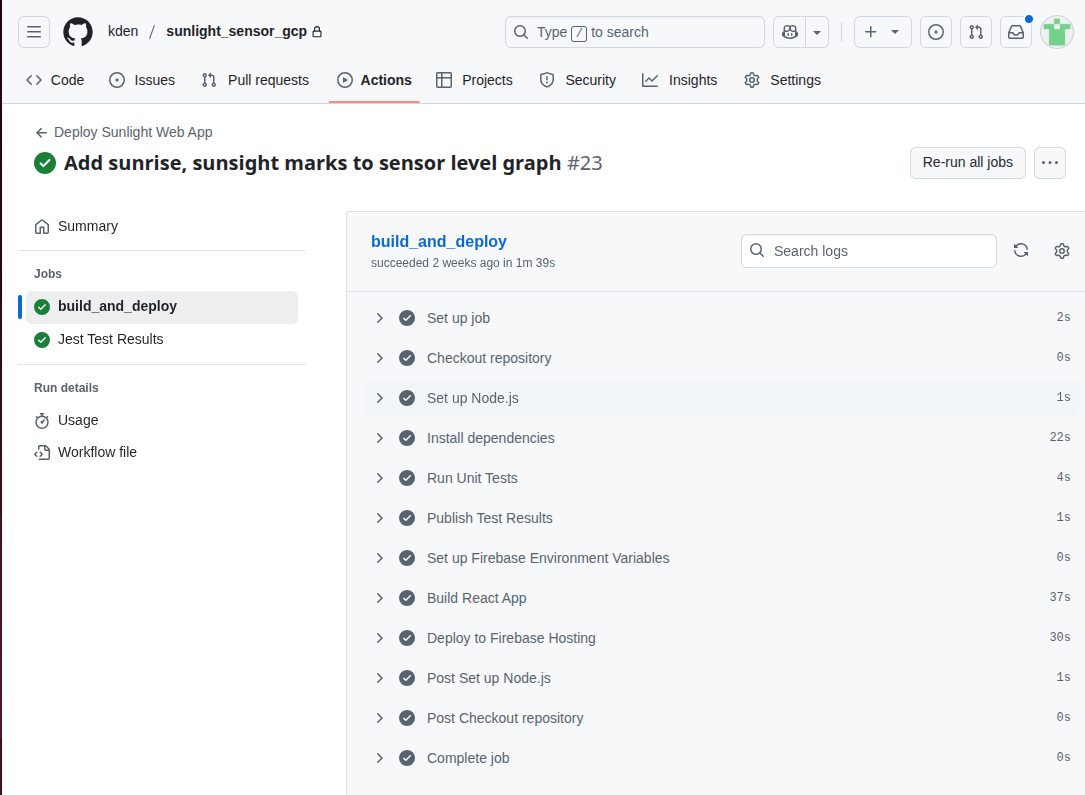

Screenshot of the GitHub Actions workflow for the web app deployment, showing steps like Set Up Job, Checkout Repository, Install Dependencies, Run Unit Tests, and Deploy to Firebase Hosting.
GitHub Actions workflow for web app deployment.

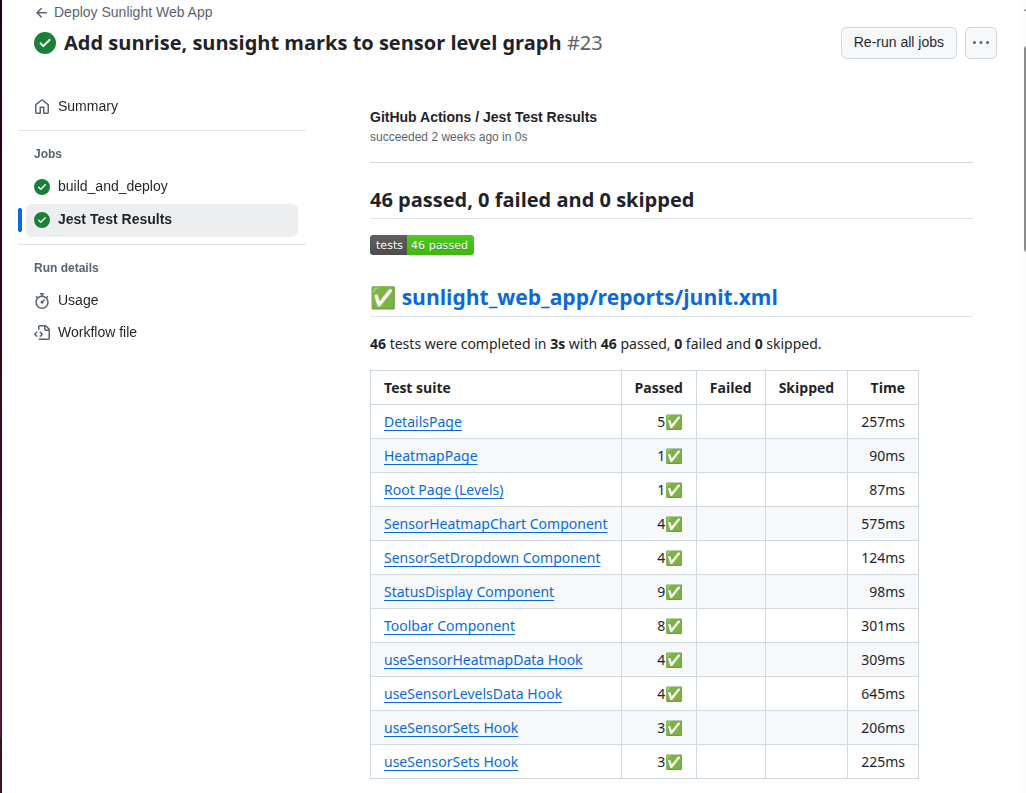

Screenshot showing the test results summary in GitHub Actions, with a green checkmark indicating all tests passed.
GitHub Actions test results summary.

How CICD would Scale Up to the Next Level

There are some unit tests throughout the project, but code coverage is currently a work in progress.

If this were a production project, ideally it would minimally:

  1. Pass automated unit tests at commit time as part of the build. A branch could not be merged to main unless the tests pass.

  2. Pass some peer code review.

  3. Be deployed to a shared QA environment for manual and automated testing.

  4. Pass tests including:

    1. Functional integration tests

    2. Checks for insecure dependencies

    3. Licensing checks

  5. Be approved for deployment to the production environment.

As the project scales up, it may be helpful to add an additional environment, for example, for demos only, that can’t be used for testing new code. (This has been a frequent wish list item at places I’ve worked.)
